Hot Dipped Galvanized Stainless Marine Mooring Anchor Chain Purpose-Crafted Marine Bollard & Cleat for Sale
Product Description:
Material Advantages:
"Anchor chain" typically refers to the heavy chain (or sometimes wire rope) attached to a ship's anchor. It connects the anchor to the ship and helps it stay firmly anchored to the seabed.
More details:
* The chain adds weight, helping the anchor lie flat and dig into the seabed.
* It acts as a shock absorber between the moving ship and the stationary anchor, reducing sudden vibrations.
* The length of the chain (called its stretch) is crucial: the longer the chain, the greater its holding power.
In some fields outside of marine engineering (such as technology or marketing), "anchor chain" may be used metaphorically, but it usually refers to actual marine equipment.

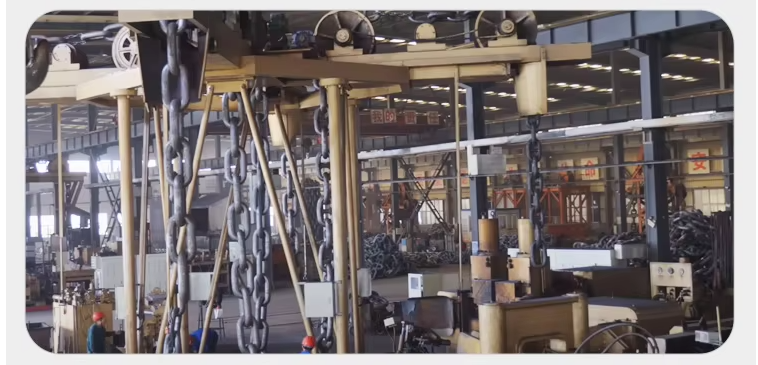

Manufacturing Process:
Process Planning
Chain Manufacturing Process: Forging/Drawing → Cutting → Welding/Riveting → Cleaning → Electroplating/Galvanizing → Shot Blasting → Inspection
Hot-Dip Galvanizing Process Parameters: Dipping Time, Temperature, Coating Thickness Control Points, Post-Processing Washing
Mast and Tie-Down Forming and Processing: Cutting, CNC Machining, Heat Treatment, Surface Treatment
Assembly and Assembly: Chain and Mast/Tie-Down Connection Method, Fastener Selection, and Coating Protection
Features:
- Chain diameter: 12.5–70 mm
- Material: Hot-dipped galvanized stainless steel
- Finish: Galvanized
- Applications: Mooring lines, anchors, vessel tie-offs
- Certifications: (e.g., ABS, DNV, ISO) [list as applicable]
- Packaging: (e.g., per-meter, per-length, or reel)

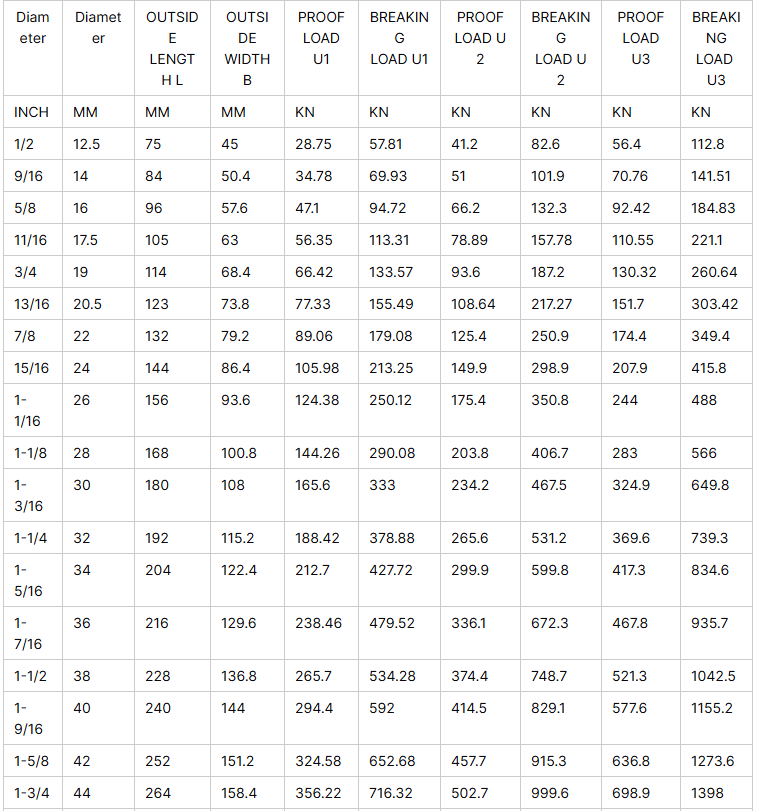

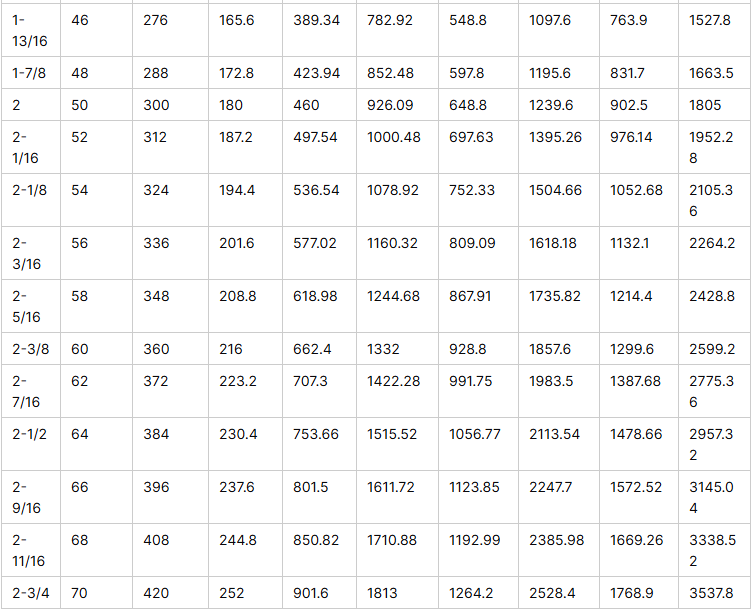

Technical Parameters:
Technical specifications: - Diameter range: 12.5 mm to 70 mm
- Material: Stainless steel with hot-dip galvanizing
- Coating: Zinc galvanization for corrosion resistance
- Ultimate tensile strength: [specify]
- Working load limit: [specify]
- Temperature range: [specify]
- Finish: Galvanized
Applications:
- Vessel mooring at marinas and harbors
- Offshore platform and rig mooring systems
- Coastal and inland waterway docking facilities
- Tugboat and pilot boat moorings
- Shipyards and construction docks for temporary or semi-permanent mooring
- Ferry and fast-attack craft docking operations
- Long-duration moorings in tidal estuaries and harbors
- Temporary mooring for fishing vessels and pleasure crafts
- Rescue and emergency response boats requiring secure, durable moorings
- Refit and maintenance projects where matching chain and hardware are needed
Support and Services:
- Customer Support Channels
- Phone, email, and live chat hours of operation
- After-hours support option for emergencies (with reasonable response times)
- Dedicated account manager or sales engineer for large orders or fleets
- Technical Assistance
- Pre-purchase consultation to determine chain diameter, length, and hardware compatibility
- On-site commissioning or remote guidance for installation and mooring setup
- CAD drawings, installation checklists, and handling/storage guidelines
- Documentation and Certifications
- Product datasheet with dimensions, materials, coatings, and performance specs
- Maintenance and inspection guidelines
- Certifications and compliance (e.g., ABS, DNV, ISO) and test reports
- Installation manuals for bollard and cleat integration
- Warranties and Returns
- Standard warranty terms (duration, coverage, exclusions)
- Repair, replacement, or credit policy for defective components
- Return process, RMA requirements, and restocking fees (if any)
- Spare Parts and Accessories
- Replacement links, shackles, bolts, and hardware compatible with the chain
- Optional accessories kits (bollard and cleat sets, mounting hardware)
- Lubricants, anti-corrosion coatings, and corrosion-inhibiting sprays
- Maintenance and Servicing
- Routine inspection checklists (chain wear, corrosion, pin/bushing wear, link integrity)
- Recommended service intervals and re-lubrication schedules
- Cleaning and storage tips to extend life in marine environments
- Training and Resources
- Webinars or in-person training on mooring best practices
- FAQ and troubleshooting guides
- Application-focused case studies and installation examples
- Customization and Engineering Support
- Custom lengths, coatings, or finish options
- Tailored packaging (per-meter, per-length, or reels) and labeling
- Engineering approvals or compatibility letters for specific vessels or operations
- Lead Times, Scheduling, and Delivery
- Typical production lead times and options for expedited manufacturing
- Inland vs. coastal shipping, freight terms, and dedicated delivery windows
- On-site delivery coordination and crane/rigging support if needed
- Customer Experience and Feedback
- Post-purchase follow-up to gather usage feedback
- Satisfaction surveys and Net Promoter Score (NPS) tracking
- Channel for reporting issues and suggesting product improvements
This high - strength alloy steel painted stud - link anchor chain, with its excellent quality and attentive service, builds a solid guarantee for your maritime career. Choosing us means choosing safety, efficiency, and worry - free operation. Embark on a new journey of navigation, starting from choosing our anchor chain!
Any question please let us know ,our JinCheng maritime will provide you the best service with 7*24 hours ~
